  ONVIF Software Stack passed ONVIF Device Test Tool V17.12

ONVIF NVT Software stack- ONVIF Network Video Transmitter:Network video server (an IP network camera or an encoder device) that sends media data over an IP network to a client. Lingodigit ONVIF NVT software stack use ONVIF Profile S (latest ONVIF specification v17.12) and passed the latest ONVIF Device Test Tool v17.12 on customized HiSilicon HI3519 (with h.265), TI DM368 and Raspberry Pi.
About ActiveX and NPAPI VLC plugin, Opera and Microsoft (on Windows 10)Edge will no longer support WebChimera NPAPI (and ActiveX) Plugin due to NPAPI Deprecation.
If you have a interest in "Live Streaming player doesn't need a plugin in modern browsers", please visit Web RTC WebRTC Live Streaming on Raspberry Pi

Lingodigit ONVIF NVT Software stack are extensive experience, guarantee and easy test.
Extensive experience, Lingodigit has followed ONVIF each update over 7 years from ONVIF specification version 2.0 to version 17.12. We cooperated with more than 20 companies to develop ONVIF IP cameras and passed ONVIF product conformance process.
Guarantee, Because ONVIF interface compatibility tested is not enough to pass ONVIF Device Tool Conformance Test. The ONVIF Software Stack quotation includes porting and helping customer to pass the ONVIF Device Tool Conformance Test. Each version of Lingodigit ONVIF software stack could be updated to latest ONVIF specification and passe the latest ONVIF Device Test Tool. Our quotation includes the all the effort of porting ONVIF to a target platform and firmware integration. We would deliver a firmware image that your can flash into the device that it would pass ONVIF Profile S conformance test in the latest version of ONVIF Device Test Tool.
Easy test, using ONVIF-Pi to turn your Raspberry Pi into an ONVIF IP camera then you can start our ONVIF NVT software stack with the popular Raspberry Pi. ONVIF-Pi bases on our ONVIF profile S NVT stack and has passed the latest ONVIF Device Test Tool v17.12. If you don’t have Raspberry Pi, we also provide another test firmware (Linux 64bits) for VirtualBox (the ONVIF-Emulator IP CAM). It uses pre-recorded video files, so frame rate and video quality settings have no effect. Contact us to getting limited ONVIF Profile S software on SOCs, such as TI TMS320DM3xx or VATICS Mozart 3xx ,M3C. You can find the development kit information from the left side items link or contact us info@lingodigit.com.


ONVIF Device Tool Conformance Test
  • ONVIF Profile S test report of ONVIF Pi (ONVIF Raspberry Pi IP Camera passed ONVIF Device Test Tool v17.12)
  • ONVIF Profile S test report of ONVIF Pi with audio(ONVIF Raspberry Pi IP Camera passed ONVIF Device Test Tool v17.01)
  • ONVIF Profile S test report of DM368 (ONVIF Device Test Tool v17.06)

  • Free downlod ONVIF-Pi and ONVIF-Emulator
    ONVIF-Pi, ONVIF Raspberry Pi IP camera has h.264 and MJPEG video codecs, and G.711 and AAC audio codecs. You can change the Raspberry Pi IP camera profiles and control others via our ONVIF Device Tool on Linux or others ONVIF software such as Windows ONVIF Device Manager. Free download ONVIF-Pi or ONVIF-Emulator IP CAM to testing Lingodigit ONVIF NVT software stack and more information, please visit ONVIF-Pi or ONVIF-Emulator IP CAM

    ONVIF-Emulator Usage: Free to using ONVIF-Pi or ONVIF-Emulator IP CAM; but it is limited, so that you cannot log on console mode.
    1. Turn On ONVIF-Emu IP-Camera via VirtualBox, and visit IP-CAM Web Page.

    2. Using CMS software to control ONVIF-Pi or ONVIF-Emulator IP CAM, such as ONVIF Device Tool (or ONVIF Device Manager) to detecting ONVIF-Emu IP-Cam. Then type default user name and password are “admin” and “admin” to login on your CMS software to control ONVIF-Pi or ONVIF-Emulator IP CAM.


    Contact to Free Download ONVIF v2.6 (v2.5) Profile S Demo version - TMS320DM368 TMS320DM365 (TI DM368/TI DM365) , GrainMedia GM8126/GM8128 , VATICS Mozart 395s /VATICS M3C Series (M332C, M388C, M392C) . Other SOCs has to customize info@lingodigit.com




    ONVIF has approved with LINGODIGIT's ONVIF NVT Software Stack IPCAM:

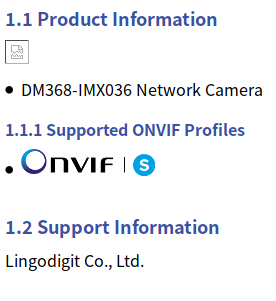

  • TMS320DM368,Product Name:DM368-IMX036 Network Camera,ONVIF Device Test Tool v14.12| v13.12 |v13.06
  • VATICS Mozart 395s ,Product Name:Mozart395s-IMX122, ONVIF Device Test Tool v13.12
  • GrainMedia GM8128 ,Product Name:GM8128 Network Camera,ONVIF Device Test Tool v13.06

    Distinguishing Lingodigit's ONVIF NVT features:
    1. Full support ONVIF standard from ONVIF version 17.12 | v2.x to version 1.02
    2.Cross-platform support and can be easily ported to embedded devices.
    3.LINGODIGIT's ONVIF is compatible with Milestone
    4.Passed the latest ONVIF Device Test Tool v17.06 | ONVIF Device Test Tool v17.12
    5.Verified ONVIF Conformant Softwares, VMS, and NVR
    6.Provide ONVIF NVT software stack porting service.

    Supported ONVIF Services
  • Device Discovery
  • Device Management
  • Media Service
  • Event Service
  • PTZ Service
  • Imaging Service (brightness, contrast, ...)
  • Device I/O Service (Relay/GPIO)

    Verified ONVIF Conformant Software, VMS, and NVR
  • ONVIF Device Test Tool v17.06 / ONVIF Device Test Tool v17.12
  • ONVIF Device Manager
  • Milestone XProtect Professional 8.0 / Go! 2.5a
  • NUUO 4.0
  • exacqVision
  • Avigilon CCS 5.0.2
  • MiraSys
  • iSpy
  • Luxriot
  • Axxon Next
  • IPcorder NVR
  • Hikvision NVR

    System Requirement
  • Linux 2.6
  • An HTTP server supports CGI
  • An RTSP server supports UDP, TCP, and HTTP tunnelling

    Hardware Platfroms with ONVIF Certification
  • GrainMedia GM8126/GM8128/GM8180
  • HiSilicon HI3519
  • Raspberry Pi
  • TITMS320 DM368/DM365/TMS320DM8127
  • VATICS Mozart 395s /380 , VATICS M3C Series (M332C, M388C, M392C)
