Lingodigit ONVIF Software Stack for IP Cameras

Lingodigit ONVIF Software Stack are ported on many SoCs NVIDIA JetsonNano, Xilinx SmartCamera+, Vatics M550S, HiSilicon HI3519 / Hi3516(with h.265), Qualcomm, Realtek RTS, TI DM368, Raspberry Pi, GrainMedia GM81xx and so on.
We implemented IP Camera related software functions based on ONVIF standard requests such as video encoder, RTSP server, motion alarm and tampering events, and integrated these functions on NVIDIA JetsonNano, Vatics M550S, HiSilicon, Raspberry Pi and GrainMedia GM81xx.

ONVIF NVIDIA JetsonNano

Lingodigit implements RTSP server and ONVIF Profile S,T software to NVIDIA JetsonNano

RTSP Server supports metadata, UDP, TCP, and HTTP tunnelling Video Encoder supports H.26,H.264,MJpeg ONVIF Profile T : Tampering detection / Motion detection / Metadata Passed ONVIF Profile T,S Conformance Test (ONVIF Device Test Tool v21.12) Passed ONVIF Profile T,S Conformance Test (ONVIF Device Test Tool v21.06) Passed ONVIF Profile S Conformance Test (ONVIF Device Test Tool v20.06)

ONVIF Xilinx - ONVIF Profile S on Xilinx SmartCameraPlus

Lingodigit implements RTSP server and ONVIF Profile S software to Xilinx SmartCamera+.

Using GStreamer RTSP Server Video Encoder supports H.264,MJpeg ; Passed ONVIF Profile S Conformance Test ( Passed ONVIF Device Test Tool v20.12) Xilinx SmartCamera information SmartCamera+ is a proof-of-concept system that includes the AR1335 4K image sensor, supports Face Detection and multiple output standards.

ONVIF PTZ Hi3516 - ONVIF Profile S, T on HiSilicon Hi3516 and Hi3519

Lingodigit implements RTSP server and ONVIF Profile S, Profile T and PTZ software to Hi3516.

Based on HiSilicon Hi3516 SDK, we implemented RTSP server, HEVC/H.265, Motion alarm, Tampering events and PTZ (Generic and Spherical Coordinate Spaces). Passed ONVIF Profile T,S (with PTZ) Conformance Test (ONVIF Device Test Tool v20.06)

ONVIF Vatics M5S - ONVIF Profile S on Vatics M550S

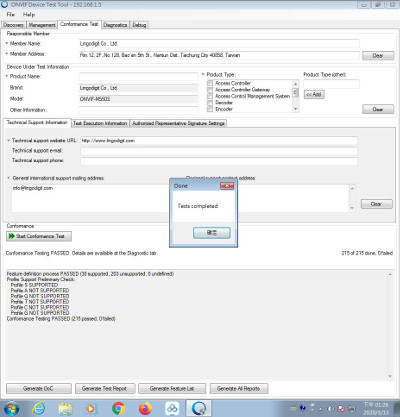

Using Vatics RTSP Server with 3 streaming H.265,H.264,MJpeg Video Encoder supports H.265,H.264,MJpeg ; Audio Encoder G.711,G.712,AAC Passed ONVIF Profile S Conformance Test ( Passed ONVIF Device Test Tool v19.12)

ONVIF Profile S GM81xx/8128

ONVIF NVT Profile S conformance test of the ONVIF Device Test Tool v18.12
GM81xx/GM8128 IPCam, Maxmum 5 video streams,Stream Codec Resolution FPS

Main H.264/MPEG4/MJPEG 1080p, 720p 1~30

Preview MJPEG VGA 1~30

Sub1 H.264/MPEG4/MJPEG VGA, QVGA 1~30

Sub2 H.264/MPEG4/MJPEG VGA, QVGA 1~30

Mobile H.264/MPEG4/MJPEG 160x128 1~30

Please contact us for further information info@lingodigit.com
